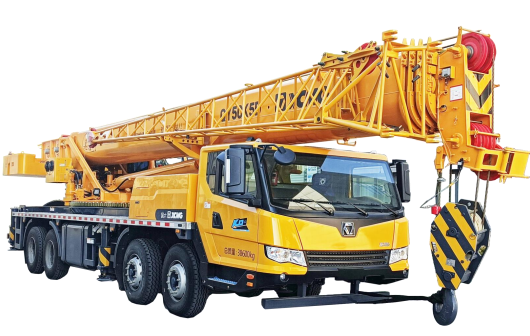

QY50K5D TRUCK CRANE

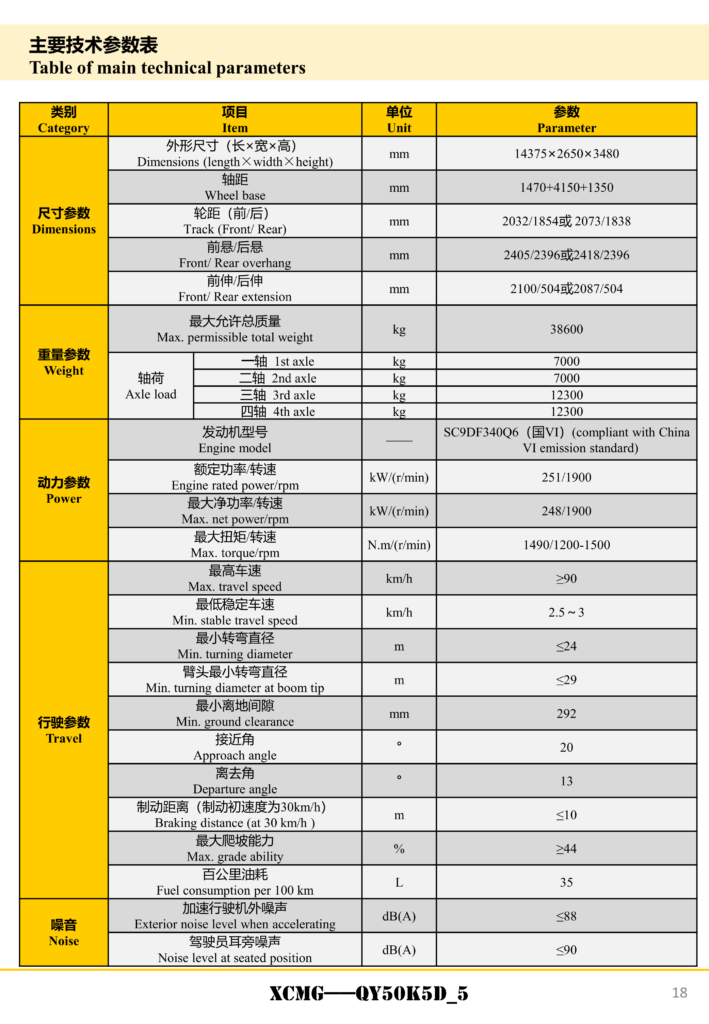

- Outline size (length×width×height): 14375×2650×3480mm
- Wheel base: 1470+4150+135mm
- Track (Front/ Rear): 2032/1854 or 2073/1838mm
- Front/ Rear overhang: 2405/2396 or 2418/2396mm
- Front/ Rear extension: 2100/504 or 2087/504mm

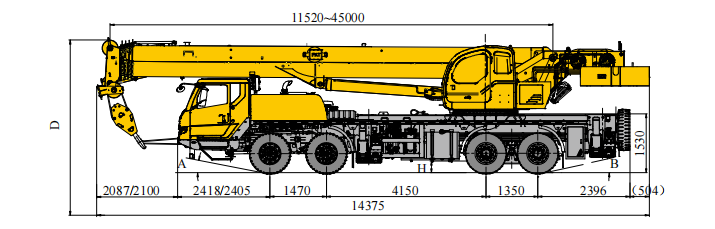

DIMENSIONS

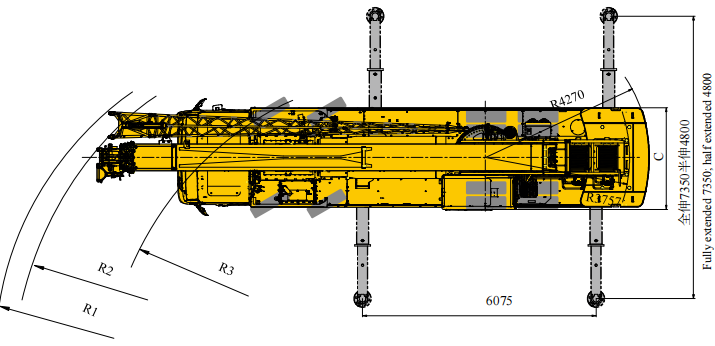

TRANSPORTATION PLAN
