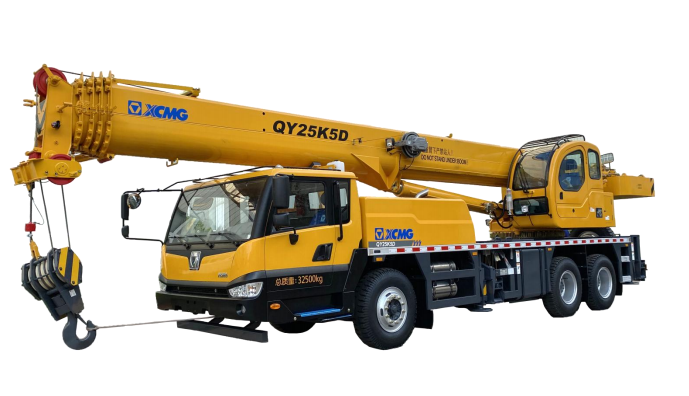

QY25K5D TRUCK CRANE
- Outline size (length×width×height): 12780×2500×3400mm
- Wheel base: 4425+1350mm
- Track (Front/ Rear): 2059/1834mm
- Front/ Rear overhang: 2375/2145mm
- Front/ Rear extension: 1895/590mm

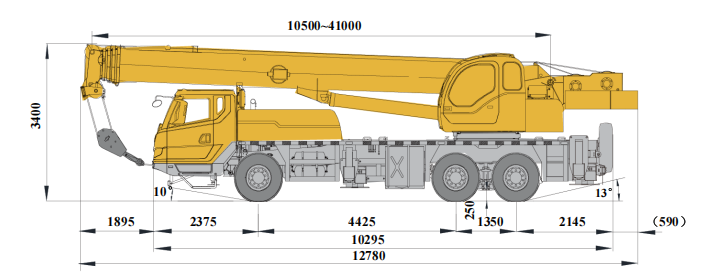

DIMENSIONS

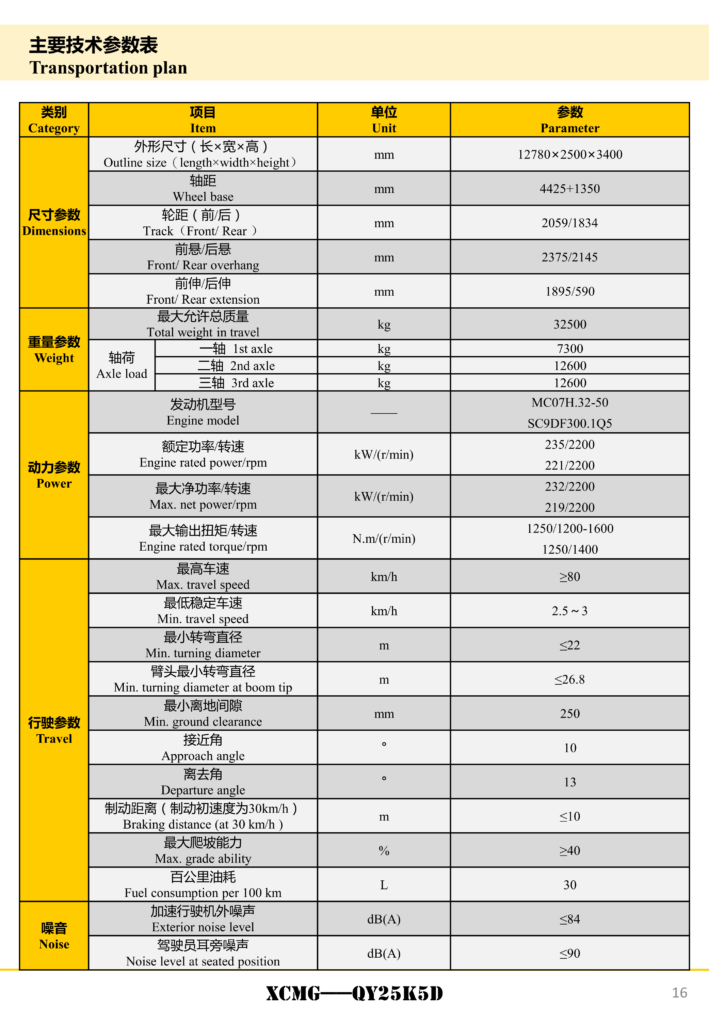

TRANSPORTATION PLAN


Have questions about the product?
Have questions about our XCMG excavators, loaders, or other construction machinery? We’re here to help. Whether you need technical specifications, pricing information, delivery details, or a customized solution for your project, our experienced team is ready to provide prompt and professional support.
